Titanium Grade 23 CNC Machining
AXALLOY provides precision multi-axis CNC machining services for Titanium Grade 23 (Ti-6Al-4V ELI). We serve critical medical device, aerospace, and high-integrity instrumentation manufacturers across North America, Europe, and Asia, delivering tight geometric tolerances, traceable raw materials, and documented quality inspection from prototype validation through repeatable production.
Precision tolerances on turned diameters, milled pockets, and critical pin interfaces.
Controlled cutting parameters, precision grinding, and wire EDM down to Ra 0.2 μm.
Certified mill test reports, ballooned drawings, CMM reports, and material lot controls.
Multi-axis simultaneous milling, live-tool turning, and 7-axis Swiss micro machining.
Grade 23 Machining Guides & Solutions
Titanium Grade 23 (Ti-6Al-4V ELI / Extra Low Interstitial) offers superior fracture toughness, biocompatibility, and corrosion resistance compared to standard Grade 5. Our dedicated titanium machining cell mitigates work-hardening, chatter, and heat build-up through specialized tool geometries, high-pressure cooling, and rigid workholding. Browse our specific engineering resources and component capabilities below.

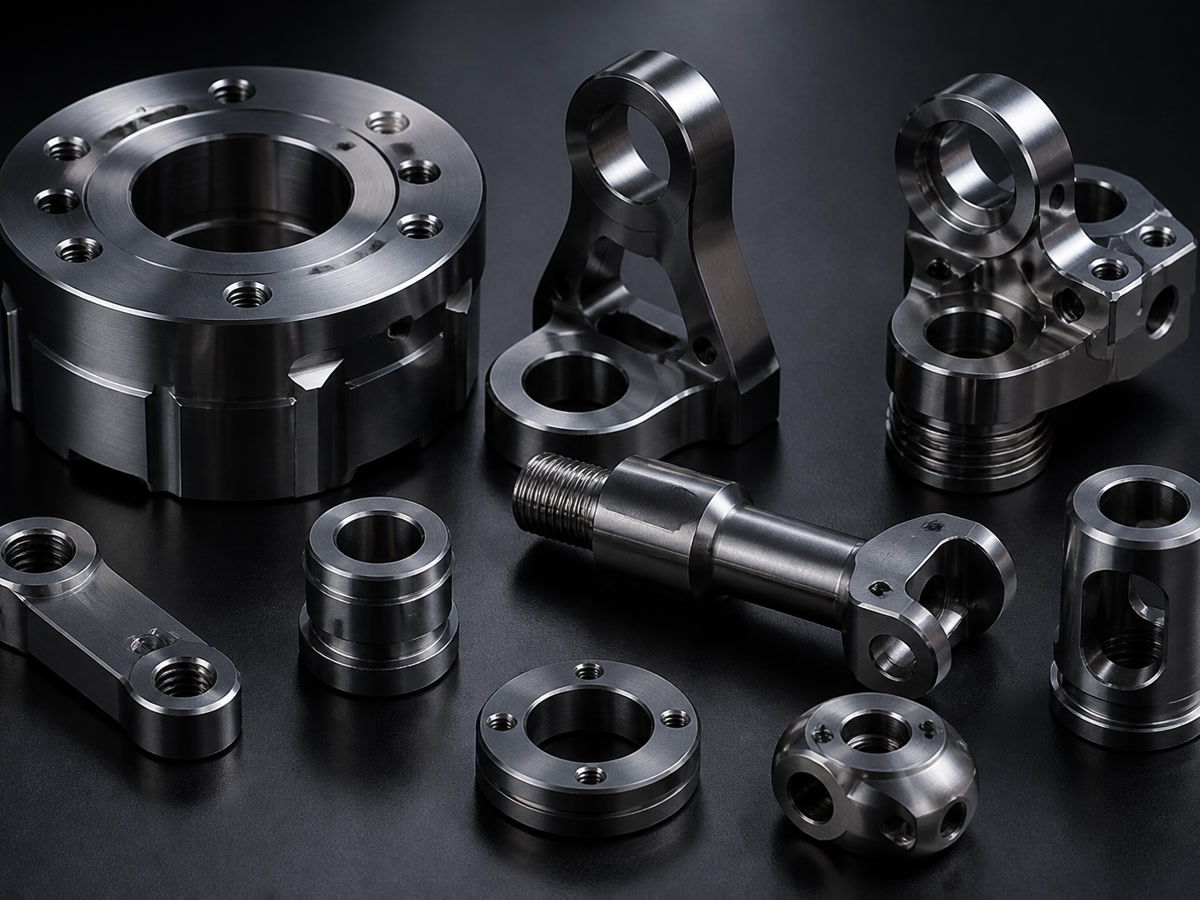

Ti-6Al-4V ELI Machining | Precision CNC for Medical & Aerospace Titanium
AXALLOY Precision delivers reliable Ti-6Al-4V ELI (Grade 23) machining with 5-axis CNC, Swiss turning, EDM and precision grinding. From prototype to low-volume production for medical implants, aerospace structures and co
View details →

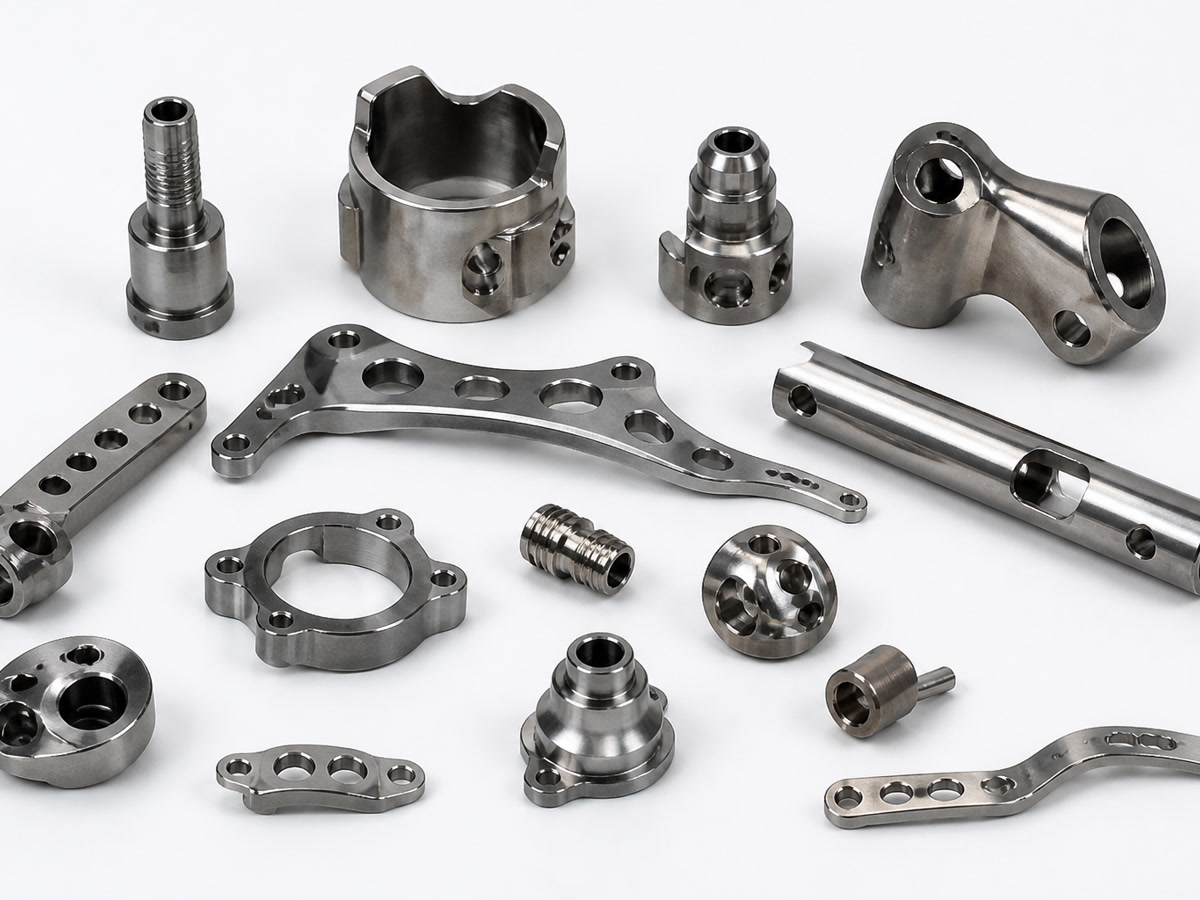

Medical Titanium Machining, ±0.005 mm Tolerance
AXALLOY Medical Titanium Machining with CNC: 5-axis milling, turning, Swiss and EDM. ±0.005 mm tolerances, Grades 2/5/23, and traceability. Get a quote.
View details →Grade 23 Machining Specifications at AXALLOY
| Parameter | Capability Specification |
|---|---|
| Supported Machining Types | 3-axis, 4-axis, 5-axis Milling; Mill-Turn; Swiss CNC; Wire & Sinker EDM |
| Precision Tolerance | Down to ±0.005 mm (Milling/Turning), ±0.002 mm (Precision Grinding) |
| Swiss CNC Range | Ø0.5 mm to Ø32 mm bar capacity, up to 7-axis precision work |
| Surface Roughness | Standard Ra 1.6 μm, Machined Ra 0.8 μm, Ground/Lapped to Ra 0.2 μm |
| Minimum Wall Thickness | 0.5 mm (geometry and tooling dependent) |
| Inspection & Verification | CMM (up to 1.8 + L/300 μm), Optical Measurement, Micro-Hardness, Surface Profilometry |
| Documentation Available | EN 10204 3.1 MTR, FAI (AS9102 format), Full CMM Reports, Heat Treatment Records |
Grade 23 Focus Topics
- • Ti-6Al-4V ELI: Ultra-low interstitial chemistry preventing embrittlement.
- • Medical & Surgical: Bone screws, implants, instrumentation handles, surgical guides.
- • Aerospace & Marine: Cryogenic housings, high-stress brackets, critical fluid couplings.
- • Complex Swiss Turning: Fine-thread profiles down to M0.8 and multi-feature shafts.
- • Secondary Finishing: Passivation, anodizing (Type II & III), micro-blasting, and ultrasonic cleaning.
Send Us Your Titanium CAD Models
Our engineering team reviews your STEP/IGES/PDF files for manufacturability, cycle efficiency, and critical tolerance feasibility within 24 business hours.
Material Assurance
All raw Ti-6Al-4V ELI bar stock and plates are procured with full material pedigree. We confirm tensile properties, chemical breakdown, and low interstitial limits (O, C, N, H) before chips begin flying.
Request an Engineering Review & Quote
Provide your component specifications, quantity expectations, and drawings. The AXALLOY technical sales team will review tolerances, tool accessibility, and delivery schedules.
